High-Speed Data Cables for 5G Communication Equipment

High-Speed Data Cables for 5G Communication Equipment

In the era of widespread 5G network deployment, the massive deluge of data poses unprecedented challenges to the physical connections within and between communication equipment.

The limitations of traditional cables in transmission rate, anti-interference capability, and energy efficiency have become bottlenecks restricting the unleashing of 5G’s potential.

High-speed data cables, acting as the “nerves and blood vessels” of communication infrastructure, directly impact the high bandwidth, low latency, and high reliability characteristics of 5G networks.

Ⅰ. The Technological Foundation of 5G Cabling: The Contest Between Copper and Fiber

▶ High-Performance Copper Cable Solutions

Shielded Twisted Pair (STP) cables like Cat 6A hold a significant position in the short-distance interconnection of internal equipment within 5G base stations due to their balanced cost-performance ratio and Power over Ethernet (PoE) capability. Their advantages include:

▪Supporting 10 Gbps high-speed transmission, meeting the data exchange requirements between AAUs (Active Antenna Units) and BBUs (Baseband Units).

▪Suppressing electromagnetic interference (EMI) inside base stations through foil/braid dual-layer shielding design.

▪Complying with stringent industrial standards like ANSI/TIA-568, ensuring stability in extreme temperatures ranging from -40°C to 70°C.

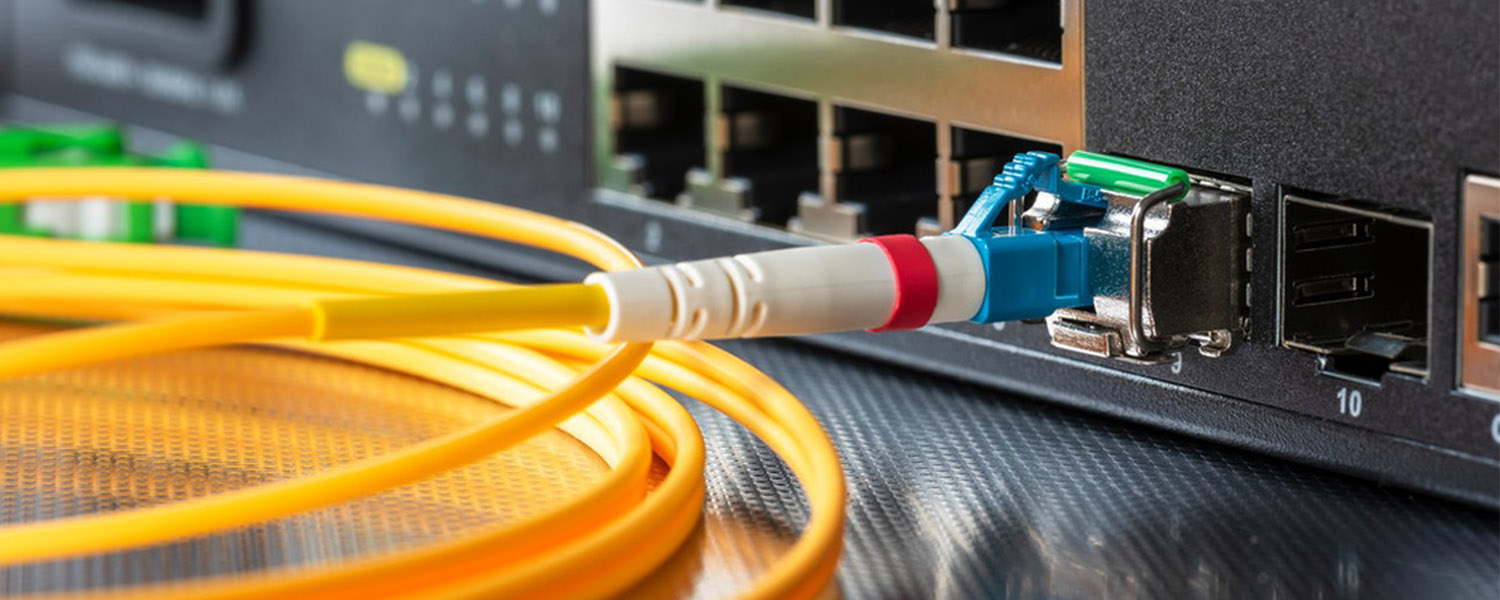

▶ Fiber Optics Dominate Long-Distance High-Speed Transmission

In 5G fronthaul/backhaul networks, OM4 multimode fiber and OS2 single-mode fiber are the preferred choices due to their physical properties:

▪Ultra-low latency (<1μs/km) and ultra-high bandwidth (supporting 100G-800G), meeting the requirements of 5G uRLLC (Ultra-Reliable Low Latency Communication) scenarios.

▪Natural immunity to electromagnetic interference, suitable for deployment in complex electromagnetic environments like high-voltage substations and industrial automation.

▪Technologies like polarization multiplexing developed by Universitat Politècnica de València (UPV), enabling dual-band (5-25GHz & 55-65GHz) transmission with a single laser, achieving 7.5Gbps aggregated rate over a 1km fiber link, significantly reducing CRAN architecture deployment costs.

▶ Table: Key Performance Comparison of Copper vs. Fiber in 5G Scenarios

II. Innovations in 5G Fronthaul and Backhaul: The Cable Revolution under CRAN Architecture

Cloud Radio Access Network (CRAN) demands ultra-high-speed data exchange between base station RRUs (Remote Radio Units) and central processing units:

▶ Dual-Band Hybrid Fiber-Wireless Systems: Combining millimeter-wave bands (60GHz) with fiber polarization multiplexing to solve the bandwidth bottleneck of traditional fronthaul network CPRI/eCPRI interfaces. Experiments show this solution maintains a Bit Error Rate (BER) stably below 3.8×10⁻³ (FEC threshold) when received optical power > -4dBm.

▶ DC-Balanced Signaling Transceivers: Using a 5Gb/s transceiver with carrier-less amplitude and phase (CAP) modulation or similar symbol-rate QPSK, achieving zero bit errors on 20-inch FR4 PCB traces without complex encoding, consuming only 200mW@1.8V, suitable for the compact spaces of distributed base stations.

▶ FPGA High-Speed Serialization Engines: Implementing parallel-to-serial conversion using IP cores based on Stratix IV GX FPGAs, supporting the Fibre Channel Protocol (FC-2 layer), providing sustained high-speed transmission capability for data acquisition cards.

III. Innovations in High-Speed Transceivers and Circuit Design

The interconnection of chips within 5G equipment relies on advanced integrated circuit technologies:

▶ Multiplexer Peaking Techniques: Achieving 20Gb/s serial output at 22mW power consumption through gated switching and inductive peaking, breaking the speed limits of traditional CMOS circuits.

▶ Differential Stacked-Inductor VCOs: Voltage-controlled oscillators using stacked-inductor design, achieving phase noise of -90dBc/Hz@1MHz with only 1mW power consumption, providing a clean clock source for high-speed SerDes.

▶ Dual-Loop PLL Architectures: Combining with third-order loop filters to compress output jitter to 0.2ps rms, ensuring timing precision for high-speed data transmission.

IV. Wireless-Wired Convergence: Flexible Connectivity for 5G Extended Scenarios

In edge areas difficult to cover with fiber, high-speed wireless bridges become critical supplements:

▶ Millimeter-Wave Point-to-Point Links: Such as the TP-Link Omada EAP215-Bridge, achieving up to 5 km range at 867Mbps using the 802.11ac 5GHz band, integrating 3 Gigabit Ethernet ports to connect IP cameras.

▶ Industrial-Grade Reliability Design:

• IP65 protection and 6kV lightning surge protection, adapting to harsh outdoor environments.
• -40°C to 70°C wide operating temperature range, ensuring stable operation in polar/desert base stations.

▶ Intelligent Management Features: Supporting Omada SDN unified management, enabling remote alignment calibration and batch configuration, reducing operational costs.

V. Transoceanic High-Speed Data Cables: The Cornerstone of 5G Global Interconnectivity

The world’s first 800GbE transoceanic trial completed by Nokia, Windstream, and Colt in 2024 marks a leap forward in submarine cable technology:

▶ Ultra-Long-Haul Transmission Breakthrough: On an 8,500 km London-Chicago link (including submarine + terrestrial fiber), using Nokia’s PSE-6s coherent optical engines and 7750 SR routers, single-wavelength capacity was increased to 1Tbps.

▶ Energy Efficiency Optimization: Compared to 400GbE systems, power consumption per bit transmitted decreased by over 40%, alleviating data center carbon emission pressure.

▶ Expanded Application Scenarios: Supporting 5G-enhanced services such as global AI data center synchronization, real-time financial transactions (intercontinental latency <60ms), and 4K/8K video distribution.

VI. Future Trends: Cable Technology Evolution Towards 6G

▶ Material Innovations:

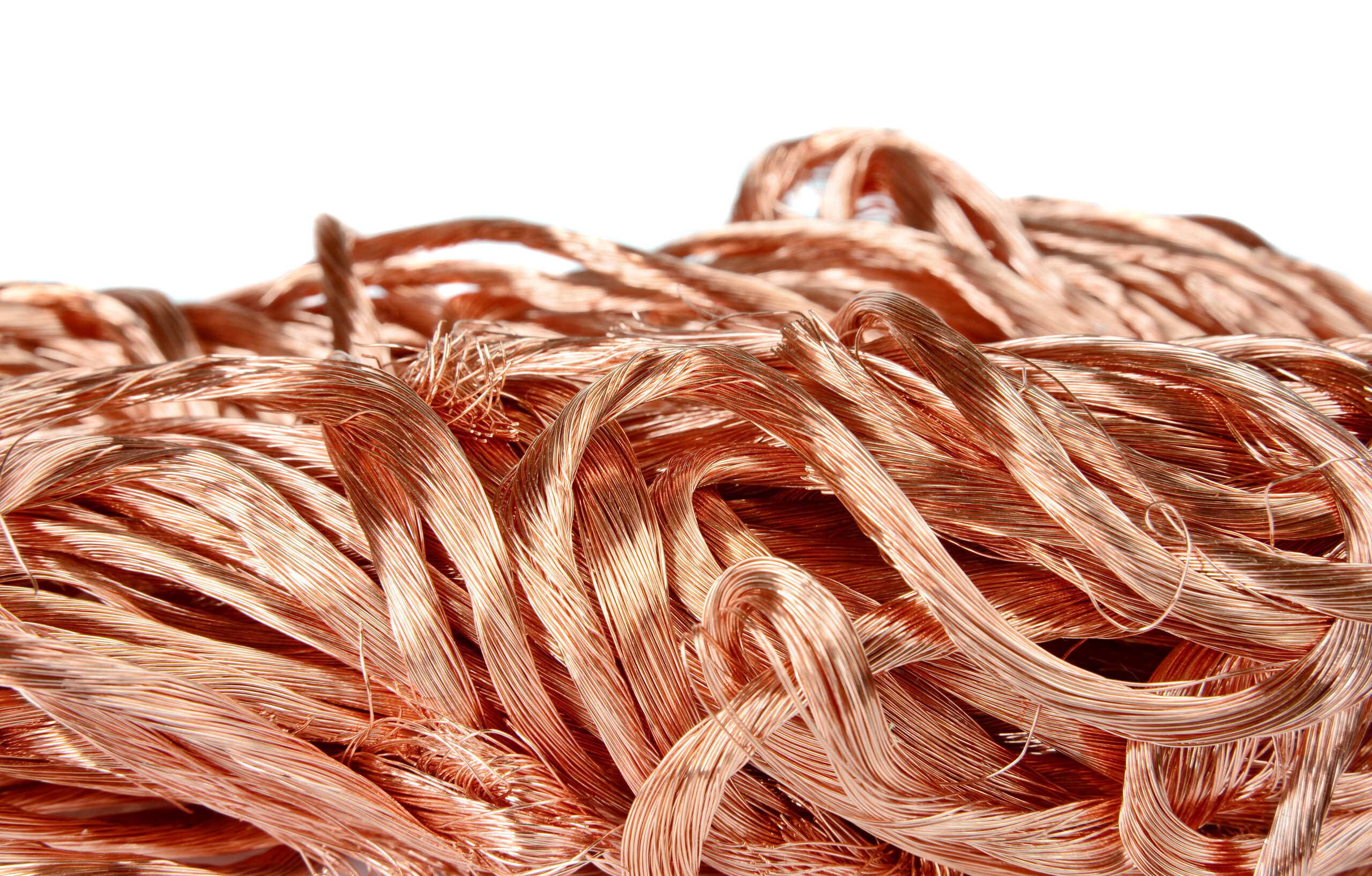

• Copper Cables: Tinned copper core + double-layer shielding structures (like Cat 6A fast-charging cables) enhance conductivity and durability.
• Fiber Optics: Hollow-core fiber (HCF) theoretically reduces latency by 30%, promising to break the speed of light limit (in practical applications)

▶ Integrated Power-Data Joint Transmission:

• Smart PoE++ Technology: Delivering 90W power + 40Gbps data over Cat 8 copper cables, paving the way for integrated mmWave AAU deployment.
• Optical-Electrical Co-Management Chips: Such as Type-C cables with built-in voltage/current monitoring ICs, enabling coordinated optimization of power delivery and signal quality.

▶ Terahertz-Band Convergence Systems:

• Dual-band architectures based on polarization-switching capability will extend into the 140GHz band, supporting Tbps-level wireless backhaul for 6G.

Conclusion

From the precision shielding layers of Cat 6A copper cables to the coherent optical engines of 800GbE submarine cables, high-speed data cables, as the “invisible backbone” of 5G communication, continuously innovate in resonance with network demands.

In the future, with the maturation of technologies like silicon photonics integration and hollow-core fiber, cables will achieve higher performance within smaller form factors.

As the Nokia trial demonstrated: when trading data from London’s financial center traverses the vast Atlantic Ocean to Chicago at 800Gb/s, every breakthrough in physical layer technology is reshaping the connectivity dimensions of the digital world.
